EKS Cluster: Part 8.25 – K8 Security Tooling; Popeye & Kube-Bench

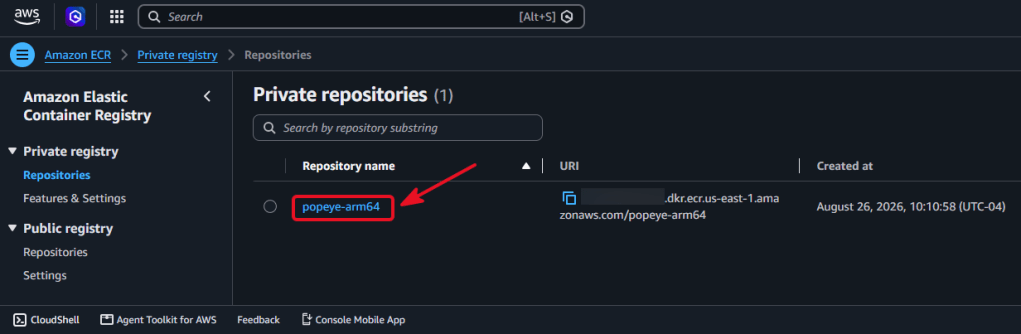

- Apply complete! Resources: 1 added, 0 changed, 0 destroyed.
Outputs:
popeye_ecr_repository_url = "xxxxxxxxxxx.dkr.ecr.us-east-1.amazonaws.com/popeye-arm64"

AWS_REGION=us-east-1
AWS_ACCOUNT_ID=$(aws sts get-caller-identity --query Account --output text)
ECR_REPO="${AWS_ACCOUNT_ID}.dkr.ecr.${AWS_REGION}.amazonaws.com/popeye-arm64"
POPEYE_VERSION="0.22.1"

aws ecr get-login-password --region "$AWS_REGION" \
  | docker login \
      --username AWS \
      --password-stdin \
      "${AWS_ACCOUNT_ID}.dkr.ecr.${AWS_REGION}.amazonaws.com"

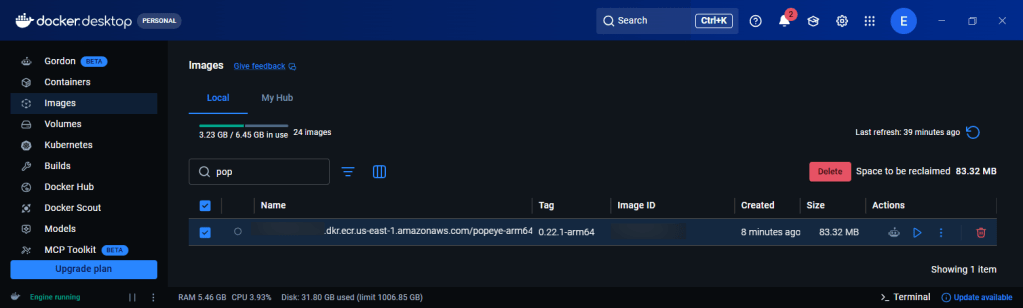

docker buildx build \
  --platform linux/arm64 \
  -t "${ECR_REPO}:${POPEYE_VERSION}-arm64" \
  --push \
  images/popeye                                                                                                                                                        1.7s

aws ecr describe-images \
  --repository-name popeye-arm64 \
  --region us-east-1

- kubectl delete job popeye-manual -n popeye --ignore-not-found
----------------------------------------------------------------------------
- kubectl create job \
  --from=cronjob/popeye \
  popeye-manual \
  -n popeye
----------------------------------------------------------------------------
- kubectl annotate application popeye -n argocd \
  argocd.argoproj.io/refresh=hard \
  --overwrite
----------------------------------------------------------------------------
- kubectl auth can-i \
  --as=system:serviceaccount:popeye:popeye \
  list endpoints -A
yes
----------------------------------------------------------------------------
- kubectl auth can-i \
  --as=system:serviceaccount:popeye:popeye \
  list configmaps -A
yes
----------------------------------------------------------------------------

- kubectl get application popeye -n argocd
- kubectl get cronjob -n popeye

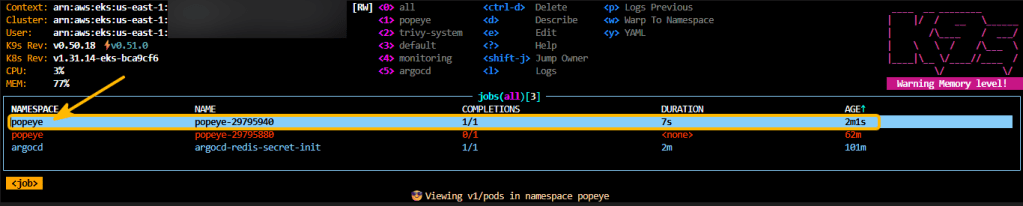

- kubectl get jobs -n popeye

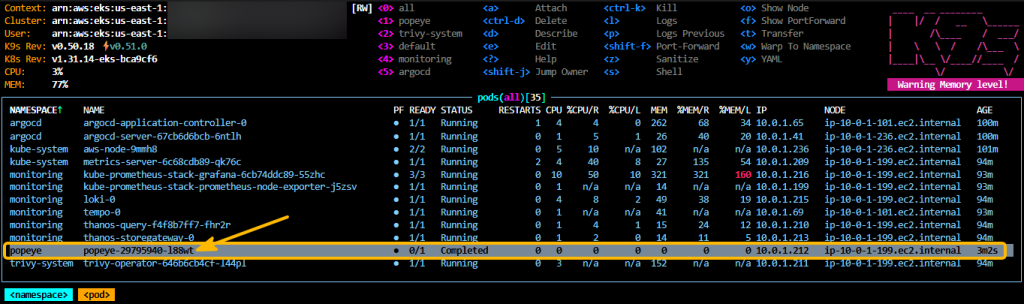

- kubectl get pods -n popeye
- kubectl get jobs -n popeye --sort-by=.metadata.creationTimestamp

NAME     SYNC STATUS   HEALTH STATUS
popeye   Synced        Healthy
NAME     SCHEDULE    TIMEZONE   SUSPEND   ACTIVE   LAST SCHEDULE   AGE
popeye   0 * * * *   <none>     False     0        41m             132m
NAME              STATUS     COMPLETIONS   DURATION   AGE
popeye-29795880   Failed     0/1           101m       101m
popeye-29795940   Complete   1/1           7s         41m
NAME                    READY   STATUS      RESTARTS   AGE
popeye-29795940-l88wt   0/1     Completed   0          41m

- kubectl logs -n popeye job/popeye-manual | grep "message:"
message: '[POP-406] K8s version OK'
        message: '[POP-107] No resource limits defined'
        message: '[POP-102] No probes defined'
        message: '[POP-1204] Pod ingress is not secured by a network policy'
        message: '[POP-302] Pod could be running as root user. Check SecurityContext/Image'
        message: '[POP-1204] Pod ingress is not secured by a network policy'
        message: '[POP-1102] Use of target port #3100 for service port TCP:tempo-prom-metrics:3100.
        message: '[POP-303] Do you mean it? ServiceAccount is automounting APIServer
        message: '[POP-106] No resources requests/limits defined'
----------------------------------------------------------------------------
-  kubectl logs -n popeye job/popeye-manual \
  | grep -E '^  (score|grade):' | head -2
  score: 77
  grade: C
----------------------------------------------------------------------------
kubectl logs -n popeye job/popeye-manual \
  | grep -o '\[POP-[0-9]\+\]' \
  | sort \
  | uniq -c \
  | sort -nr
     48 [POP-1204]
     46 [POP-400]
     28 [POP-106]
     27 [POP-306]
     27 [POP-102]
     22 [POP-301]
     19 [POP-1102]
      8 [POP-401]
      4 [POP-666]
      4 [POP-105]
      3 [POP-708]
      2 [POP-1300]
      1 [POP-406]

----------------------------------------------------------------------------
/infra:
terraform fmt -recursive
terraform validate
terraform plan
terraform apply
----------------------------------------------------------------------------
/infra:
- aws eks update-kubeconfig \
  --region us-east-1 \
  --name say-when-east
----------------------------------------------------------------------------
/infra:
- export COSIGN_IDENTITY="your-email@example.com"
- ./scripts/build-secure-popeye.sh
----------------------------------------------------------------------------
/gitops:
- kubectl create job \
  --from=cronjob/popeye \
  popeye-manual \
  -n popeye
- kubectl logs -n popeye job/popeye-manual
----------------------------------------------------------------------------

- docker buildx imagetools inspect aquasec/kube-bench:v0.15.6
Name:      docker.io/aquasec/kube-bench:v0.15.6
MediaType: application/vnd.oci.image.index.v1+json
Digest:    sha256:861900910eec45b54a97e4a2af81b16fae7203d768f7f8e7de3b7456807870f5

Manifests:
  Name:        docker.io/aquasec/kube-bench:v0.15.6@sha256:0ce0a3207306919f1efedbc1ae7a5032b71386ebd99adbbed48cd4f5525160c6
  MediaType:   application/vnd.oci.image.manifest.v1+json
  Platform:    linux/arm64
----------------------------------------------------------------------------
/infra:
- terraform apply
- kubectl annotate application kube-bench -n argocd \
  argocd.argoproj.io/refresh=hard \
  --overwrite
----------------------------------------------------------------------------
/gitops:
- kubectl create job \
  --from=cronjob/kube-bench \
  kube-bench-manual \
  -n kube-bench
-  kubectl get application -n argocd
NAME                    SYNC STATUS   HEALTH STATUS
bootstrap-root          Synced        Healthy
kube-bench              Synced        Healthy
kube-prometheus-stack   Synced        Healthy
loki                    Synced        Healthy
metrics-server          Synced        Healthy
monitoring-root         Synced        Healthy
network-policies        Synced        Healthy
popeye                  Synced        Healthy
tempo                   Synced        Healthy
thanos                  Synced        Healthy
trivy-operator          Synced        Healthy

- kubectl logs -n kube-bench job/kube-bench-manual
----------------------------------------------------------------------------
[INFO] 3 Worker Node Security Configuration
[INFO] 3.1 Worker Node Configuration Files
[PASS] 3.1.1 Ensure that the kubeconfig file permissions are set to 644 or more restrictive (Automated)
[PASS] 3.1.2 Ensure that the kubelet kubeconfig file ownership is set to root:root (Automated)
[PASS] 3.1.3 Ensure that the kubelet configuration file has permissions set to 644 or more restrictive (Automated)
[PASS] 3.1.4 Ensure that the kubelet configuration file ownership is set to root:root (Automated)
----------------------------------------------------------------------------
== Remediations policies ==
4.1.1 Identify all clusterrolebindings to the cluster-admin role. Check if they are used and if
they need this role or if they could use a role with fewer privileges.
Where possible, first bind users to a lower privileged role and then remove the
clusterrolebinding to the cluster-admin role :
kubectl delete clusterrolebinding [name]
----------------------------------------------------------------------------
4.5.2 As a best practice we recommend that you scope the binding for privileged pods to
service accounts within a particular namespace, e.g. kube-system, and limiting access
to that namespace. For all other serviceaccounts/namespaces, we recommend
implementing a more restrictive policy such as this:
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
  name: restricted
  annotations:
    seccomp.security.alpha.kubernetes.io/allowedProfileNames: 'docker/default,runtime/default'
    apparmor.security.beta.kubernetes.io/allowedProfileNames: 'runtime/default'
    seccomp.security.alpha.kubernetes.io/defaultProfileName: 'runtime/default'
    apparmor.security.beta.kubernetes.io/defaultProfileName: 'runtime/default'
----------------------------------------------------------------------------
5.1.4 To minimize AWS ECR container registries to only those approved, you can follow these steps:
1.  Define your approval criteria: Determine the criteria that containers must meet to
    be considered approved. This can include factors such as security, compliance,
    compatibility, and other requirements.
2.  Identify all existing ECR registries: Identify all ECR registries that are currently
    being used in your organization.
3.  Evaluate ECR registries against approval criteria: Evaluate each ECR registry
    against your approval criteria to determine whether it should be approved or not.
    This can be done by reviewing the registry settings and configuration, as well as
    conducting security assessments and vulnerability scans.

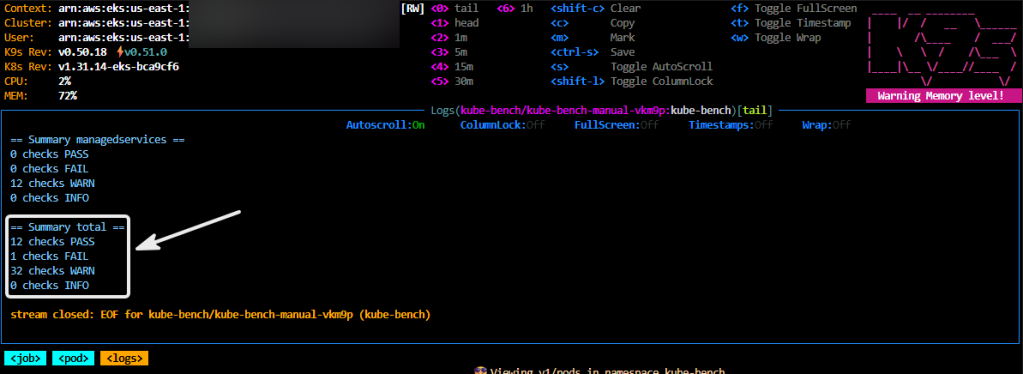

- kubectl logs -n kube-bench job/kube-bench-manual \
  | grep -A4 "Summary total"
== Summary total ==
12 checks PASS
1 checks FAIL
32 checks WARN
0 checks INFO

- kubectl logs -n kube-bench job/kube-bench-manual \
  | grep '^\[FAIL\]'
[FAIL] 3.2.7 Ensure that the --eventRecordQPS argument is set to 0 or a level which ensures appropriate event capture (Automated)
----------------------------------------------------------------------------
- kubectl logs -n kube-bench job/kube-bench-manual \
  | grep -A3 '3.2.7'
[FAIL] 3.2.7 Ensure that the --eventRecordQPS argument is set to 0 or a level which ensures appropriate event capture (Automated)
[PASS] 3.2.9 Ensure that the RotateKubeletServerCertificate argument is set to true (Automated)
--
3.2.7 If using a Kubelet config file, edit the file to set eventRecordQPS: to an appropriate
level.
If using command line arguments, edit the kubelet service file
/etc/systemd/system/kubelet.service.d/10-kubeadm.conf on each worker node

- kubectl logs -n kube-bench job/kube-bench-manual \
  | grep -E '^\[(PASS|FAIL|WARN)\]'
[PASS] 3.1.1 Ensure that the kubeconfig file permissions are set to 644 or more restrictive (Automated)
[PASS] 3.2.6 Ensure that the --make-iptables-util-chains argument is set to true (Automated)
[FAIL] 3.2.7 Ensure that the --eventRecordQPS argument is set to 0 or a level which ensures appropriate event capture (Automated)
[PASS] 3.2.8 Ensure that the --rotate-certificates argument is not present or is set to true (Automated)
[PASS] 3.2.9 Ensure that the RotateKubeletServerCertificate argument is set to true (Automated)
[WARN] 4.1.1 Ensure that the cluster-admin role is only used where required (Automated)
[WARN] 4.1.2 Minimize access to secrets (Automated)
[WARN] 4.1.3 Minimize wildcard use in Roles and ClusterRoles (Automated)
